Raycus Portable Fiber Laser Marking Machine 20W 30W 50W 70W 100W

Basic Information

Place of Origin:	CHINA
Brand Name:	HM
Certification:	CE
Model Number:	HM-WLD

Minimum Order Quantity:	1
Price:	1000USD
Packaging Details:	1008090cm
Delivery Time:	7 work days
Payment Terms:	T/T, Western Union

Get Best Price Contact Now

Graphic Format Supported:	AI, PLT, DXF, BMP, Dst, DXP	Working Accuracy:	0.01mm
Laser Type:	Fiber Laser	Control Software:	JCZ
Cooling Mode:	Air Cooling	Product Name:	Fiber Laser Marking Machine
Key Selling Points:	Easy To Operate	Weight (KG):	50 KG
Marking Area:	110*110mm	Laser Source:	IPG Raycus Max JPT
Laser Power:	20W /30w/ 50w(Optional)
High Light:	Raycus Portable Fiber Laser Marking Machine , Fiber Laser Marking Machine 20W

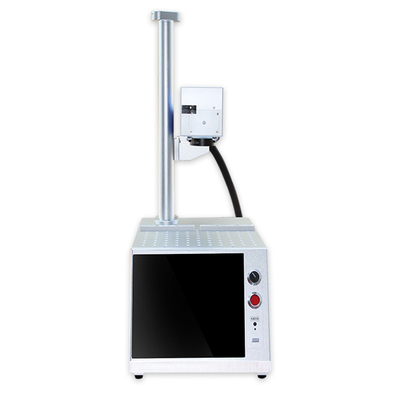

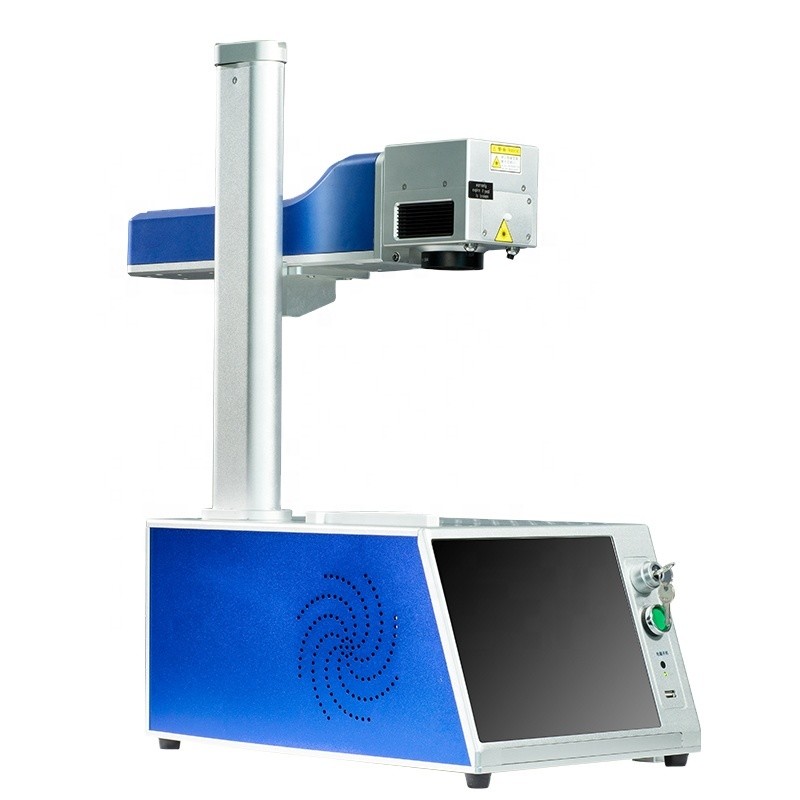

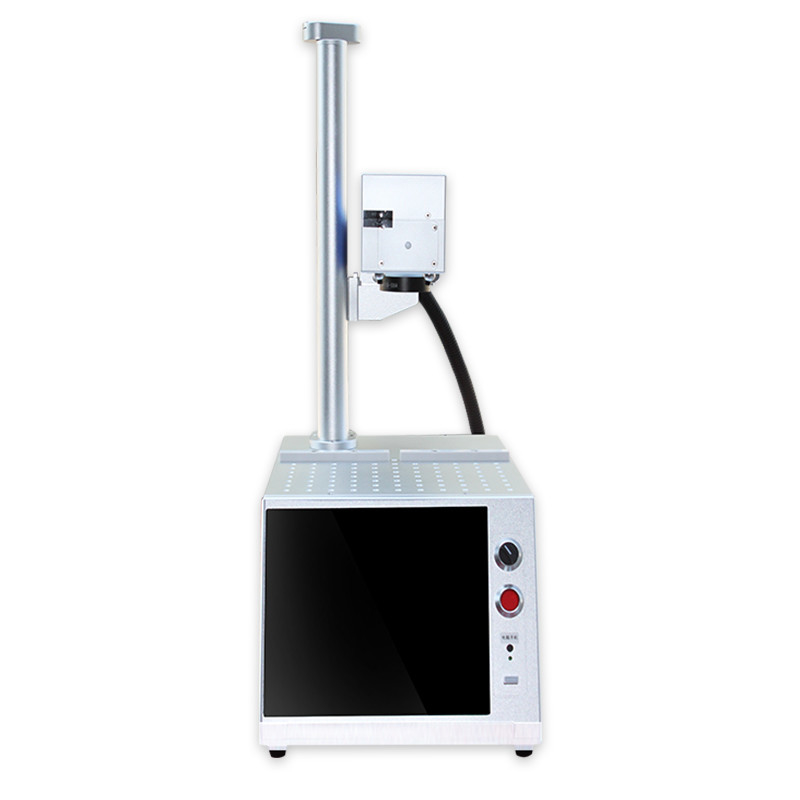

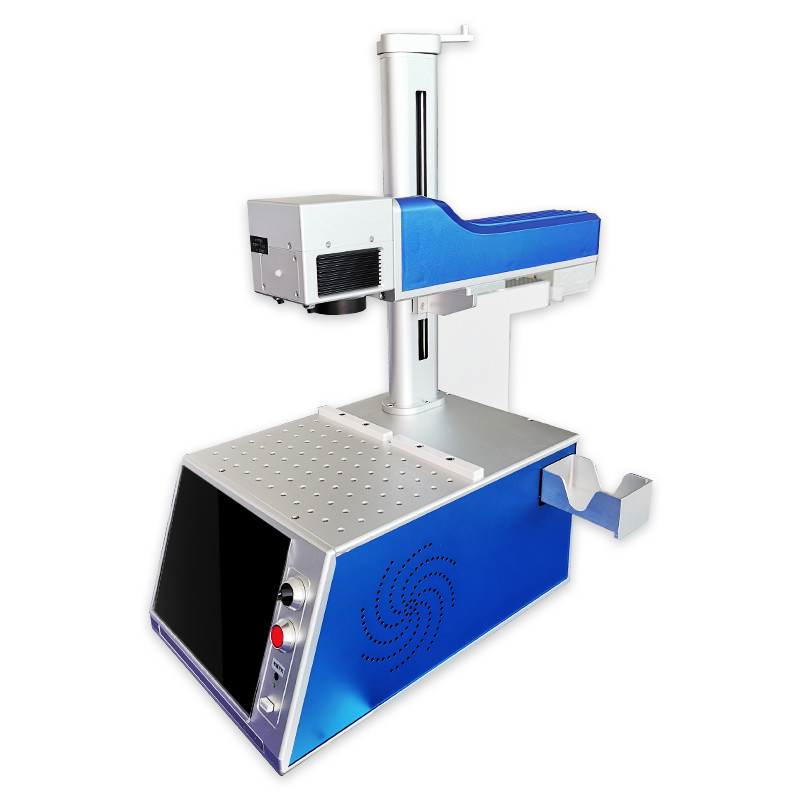

20W 30W 50W 70W 100W Raycus Portable Fiber Laser Marking Machine

Fiber laser marking machine is mainly composed of three parts, vibration lens, marking card, the production of laser marking machine, fiber laser beam quality is good, the output center is 1064 nm, the whole life in 100000 hours, compared with other types of laser marking machine live longer, electro-optic conversion efficiency of 28% above, relative to other types of laser marking machine conversion efficiency of 2% 10% of the huge advantage, outstanding performance in energy conservation and environmental protection, etc

Imported high speed galvo scanner. (China brand optional)

High precision with repetition as tiny as 0.2mm.

Fiber laser marking machine can make deep marking up to 1.0mm on stainless steel.

Fast marking speed.

.

Simple and convenient operation. Easy to learn and handle..

Stable structure, little vibration during work.

For different marking requirement, we have four type for you.

No consumables: Fiber laser machine can be used for 8-10 years without any consumables.

Low power consumption: low cost, only 0.5kw per hour.

Perfect performance, 24 hours continuous working ability.

Long working life. , around 100000hours

1.Fiber Laser Source

A wide selection of operating wavelengths, ultra-low amplitude noise,high stability and more than 10,000 hours service time.

2.Digital Laser Scanning Head

Fast response ability<0.7ms,can realize fast speed marking and high precision.3. EZ-CAD Control System

With stable performance and high reliability.More than 10,000 sets of equipment are using EZ-CAD control card,shield-utilizing

part of complex functions,ensuring higher stability.

4.Red Light Pointer

Adopts red light pointer to show the laser path since laser beam is invisible.

5.Lifting Handle

Can adjust the distance between the marking head and the object, making the marking easily. The standard distance of elevation is 400mm, it can be customized.

6.Ruler Scale

Helps user to adjust the height of different marking object. Then the user can position and find it easily next time.7.Portable Handle Makes the machine easy to move.

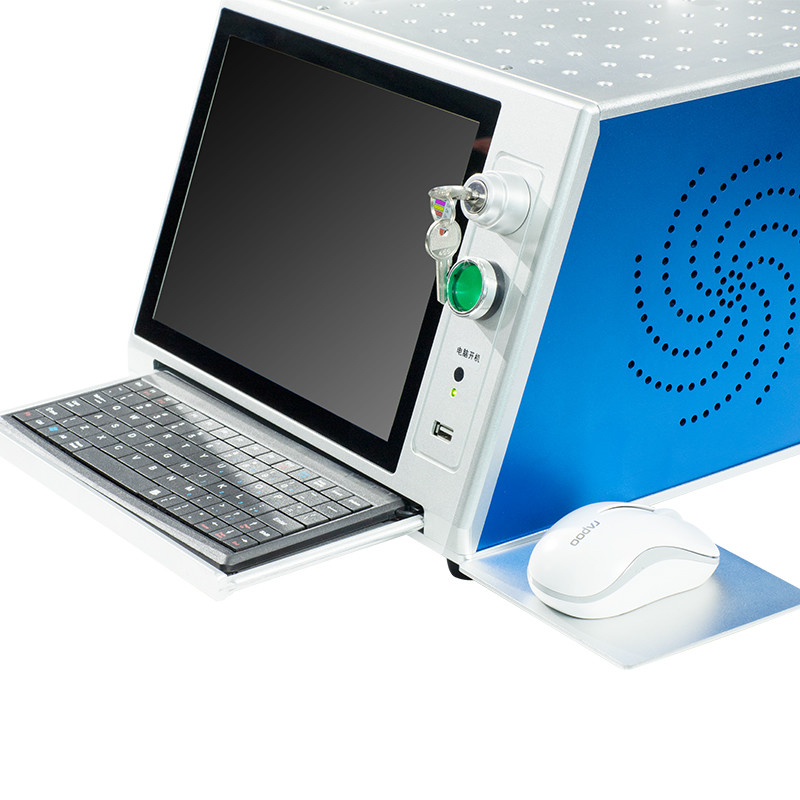

8.Main Switch

The main switch includes emergency stop switch, key switch and start switch, which are simple and easy to operate

Specification

item	value
Application	Laser Marking
Working Accuracy	0.01mm
Graphic Format Supported	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Laser Type	fiber laser
Condition	New
CNC or Not	Yes
Cooling Mode	Air Cooling
Control Software	JCZ
Place of Origin	China
Laser Source Brand	RAYCUS
Weight (KG)	60KG
Key Selling Points	Easy to Operate
Warranty	3 years
	Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location	Germany, Indonesia, Thailand
Showroom Location	Germany, Indonesia, Thailand
Marking Area	110*110mm
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Marketing Type	Ordinary Product
Warranty of core components	3 years
Core Components	laser source
Product name	Fiber Laser Marking Machine
Laser source	IPG Raycus Max JPT
Laser Power	20W /30w/ 50w(Optional)
Applicable Material	Metal
Working area	110110mm /175175mm/ 200*200mm
Control system	JCZ Control System
Marking Speed	0-7000mm/s
Type	Fbier Laser
Power	110/220V
Function	Marking Logo Metal
