Wuhan Bochuangxing Laser Technology Co., Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | bcx |
| Certification: | ce |
| Model Number: | bcx—0022 |
| Minimum Order Quantity: | 1 |
| Price: | 1500US dollars |
| Packaging Details: | specialized shatterproof packing |
| Delivery Time: | 8 |
| Payment Terms: | T/T |
| Supply Ability: | 99 |
| Material: | Rust Oxide / Painting Cotaing | Power(w): | 50w/100w/200w/300w/500W/1000w |
|---|---|---|---|
| Laser Power: | 50W 70W 100W 200W | Product Name: | Laser Cleaning Machine 50w 70w 100w High Precision Tyre/ Car/ Glass |
| Industry Used: | Marine Industry | Cooling Method: | Water Cooling |
| Feature: | Rust / Corrosion Inhibitor | ||
| High Light: | BCX 50w laser cleaning machine,CE 50w laser cleaning machine,BCX portable rust descaling machine |
||

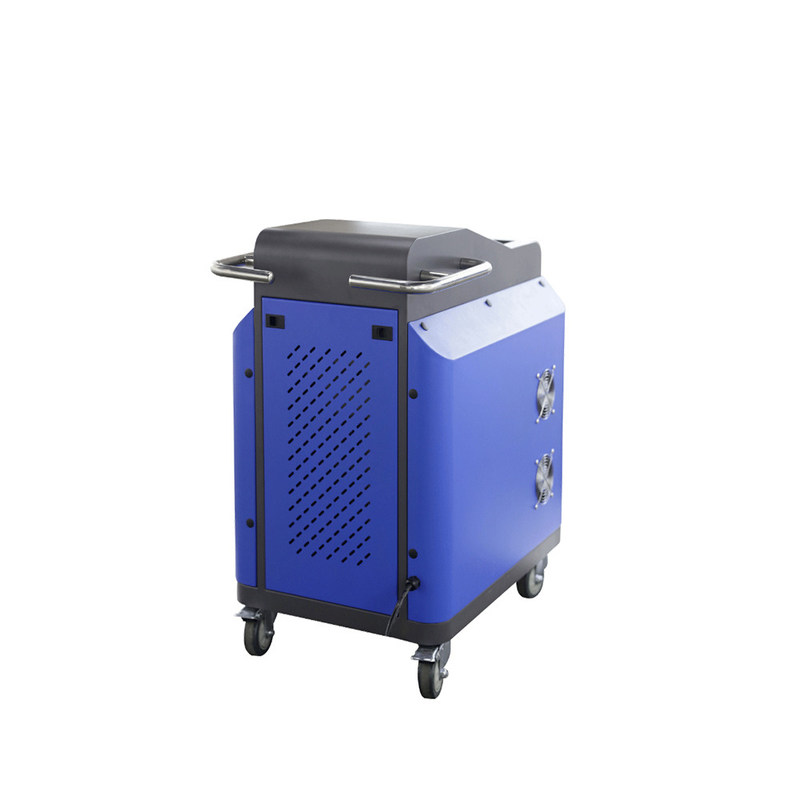

Handheld Metal Surface Laser Rust Removal Machine Fiber Laser Cleaning Machine
Main Features:
1. Quick derusting
The rust layer of the relatively fluffy surface of the object is cleaved by physical blasting, and the high-speed spot is moved to form a plume to discharge the cleaning debris to complete the cleaning. Mainly used in metal descaling.
2. High efficiency degreasing
The high-energy pulsed laser is focused on the surface of the cleaning object, irregular structures such as dirt and rust, and the dark surface absorbs the laser energy and the plasma energy formed on the metal surface, and is instantaneously vaporized away from the base material.
3. Environmental protection paint removal
The final reaction product is discharged in the form of a gas. The laser of the special mode is lower than the destruction threshold of the master batch, and the coating can be peeled off without damaging the base metal.
Advantages:
High efficiency cleaning saves time and costs
Portable design, ergonomic and easy to operate
Non-contact cleaning, no damage to the base metal, green
Interchangeable field lens, adjustable depth of focus, wider cleaning range
Industry Applications:
RECI provides surface preparation technology that’s both efficient and remarkably versatile for a growing list of industrial applications. Whether the surface is metallic, plastic, ceramics, glass, stone or concrete, the results speak for themselves.
1) Metal surface derusting
2) Surface paint removal paint treatment
3) Surface without dirt, stains, dirt cleaning
4) Surface coating, coating removal
5) Oxide surface,Oil stain and contaminant cleaning
6) Welding surface / spray surface pretreatment
7) Stone figure surface dust & attachment cleaning.
8) Rubber/ plastic/ metal mold residue cleaning
Technical Parameters:
| characteristic | Test Conditions | Minimum value | Typical value | Maximum | unit |
| Operating mode | pulse | ||||
| Output power -100W | 100% power output | 99 | 100 | 110 | W |
| Output power -200W | 100% power output | 199 | 200 | 210 | W |
| Power adjustment range | 5% | 100% | |||
| Center wavelength | 100% power output | 1060 | 1064 | 1068 | nm |
| Pulse Width | 100% power output | 80 | 100 | 160 | ns |
| Long-term power stability | 100% power output | ±2 | ±5 | % | |
| Maximum current loss | Pout=pnom | 4 | 5 | 6 | A |
| Preheat time | Achieve operation | 10 | S | ||
| Completely stable | 3 | min | |||
| Machine power consumption | 480W(AC110V/220V) | ||||
| range of working temperature | 0 | +40 | ℃ | ||
| humidity | 10 | 96 | ℃ | ||
| Total Weight | 100W | 87 | kg | ||
| 200W | 93 | ||||
| Overall size | 100W | 835*500*925(length * width * height) | |||
| 200W | |||||
| storage temperature | -10 | +60 | ℃ | ||
| cooling method | Forced air cooling | ||||
 |
Delivery Time | Shipped in 7-19 working days after payment. |
| Package | 1.Covered by some soft materials,mainly using pearl wool. 2.Covered plastic wrap out it tightly. 3.The outmost is wooden case with fixed formwork. 4.The bottom of the wooden case has firm iron jack. |
