Place of Origin: | China |
---|---|
Brand Name: | BCX |
Certification: | CE |
Model Number: | BCX |
Minimum Order Quantity: | 1 |
Price: | USD |
Packaging Details: | wooden box |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 999 |
Certification: | CE | Condition: | New |
---|---|---|---|
Graphic Format Supported: | PLT,DXF | Control Software: | Cypcut |
Application: | Laser Cutting | Laser Power: | 500W / 1000W / 2000W / 3000W |
Color: | Blue | Warranty: | 2 Years |
Function: | Cutting Metal Materials | ||
High Light: | 2000W Metal Fiber Laser Cutting Machine,CNC Sheet Fiber Laser Cutting Machine |

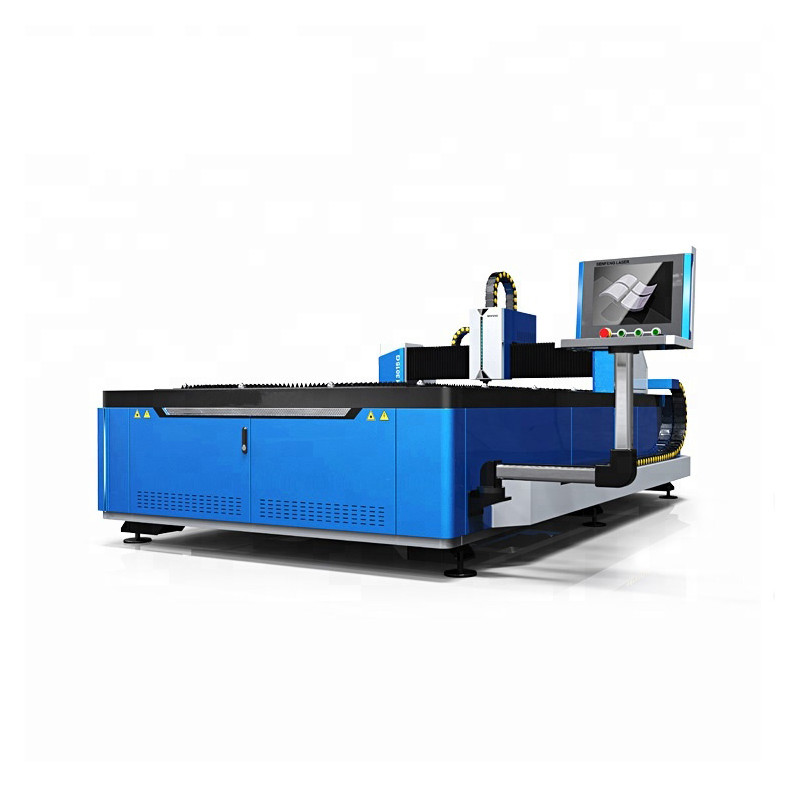

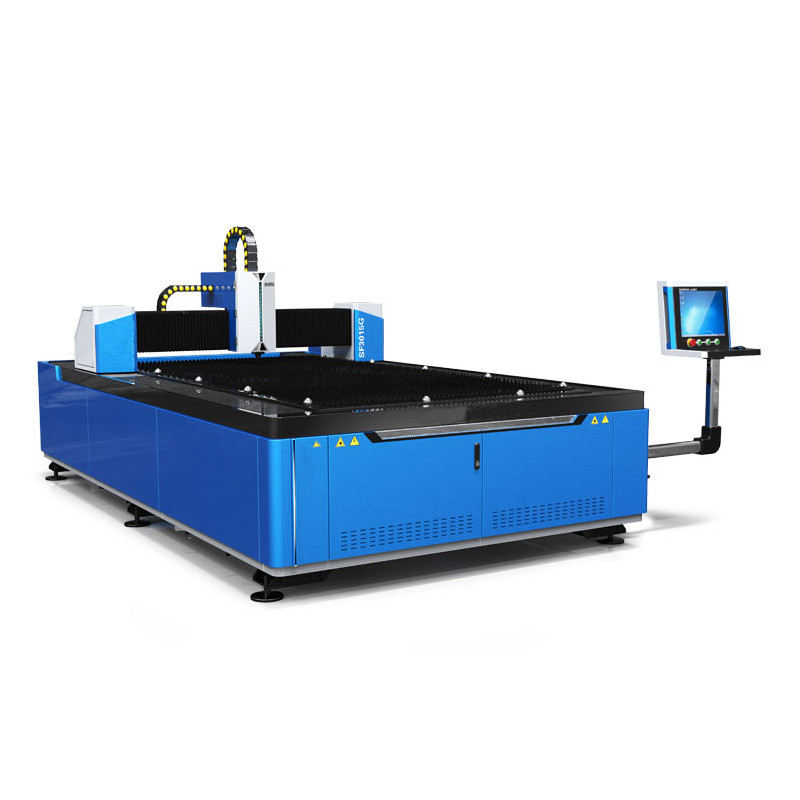

RAYCUS 2000W watt CNC sheet metal fiber laser cutting machine
fiber laser cutter reaches the top level in China, which is customers’ best choice in metal industry. The bed is welded by precise welding process after annealing and aging treatment, and the beam is airborne aluminium castings. For the more, the running speed of the machine can reach 80 m/min.
Parameters:
Model
|
SENFENG 2000w/2kw Open Type Single Table Fiber Laser Cutting Machine
|
Laser Power |
1000W/1500W/2000W/3000W
|
Work Area
|
3000*1500mm/9.84*4.92ft
|
X-axis Travel
|
1500mm/4.92ft
|
Y-axis Travel
|
3000mm/9.84ft
|
Z-axis Travel
|
220mm/0.72ft
|
Positioning Accuracy
|
±0.05mm
|
Repeated Positioning
|
±0.02mm
|
Maximum Speed
|
80m/min
|
Maximum Acceleration
|
0.8G
|
Table Maximum Load(KG)
|
700
|
Outline Size(mm)
|
4626*2950*1900
|
Power Parameters
|
Three-phase AC 380V 50Hz
|
Protection Level of Total Power Supply
|
IP54
|
