Place of Origin: | China |
---|---|
Brand Name: | bcx |
Certification: | ce |
Model Number: | bcx-7 |
Minimum Order Quantity: | 1 |
Price: | 8000 US dollars |
Packaging Details: | wooden |
Delivery Time: | 8 |
Payment Terms: | T/T |
Supply Ability: | 99 |
Product Name: | Six Axis Robot Arm | Certification: | Ce |
---|---|---|---|
Model: | Bcx-7 | Brand: | Bcx |
Application: | Industry | Power: | 6.5KVA |
High Light: | 6.5KVA six axis robot arm,380V six axis robot arm,6.5KVA high precision robot arm |

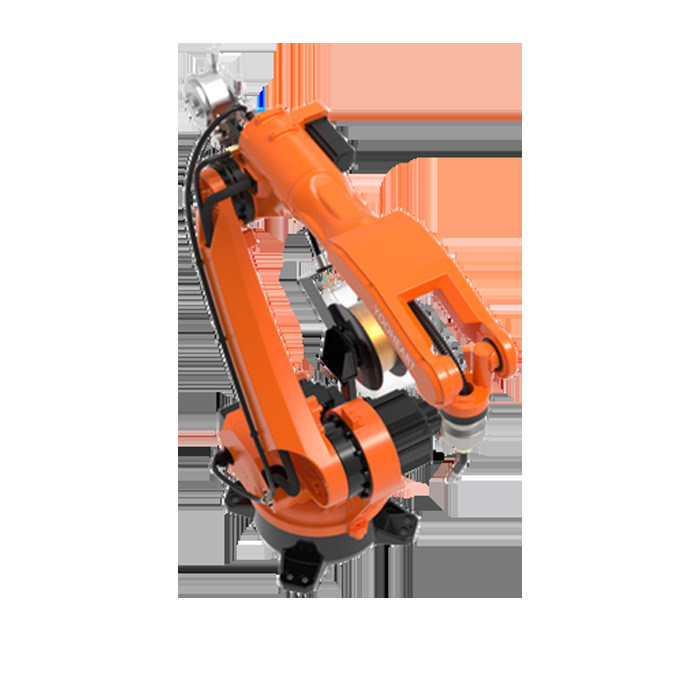

Industry Six Axis Welding Robot Arm for Welding and Cutting Applications
Place of Origin | Anhui, China |
Brand Name | Yooheart |
Application | welding |
Features | good quality |
Condition | New |
Warranty | 1year |
Dimension(L*W*H) | 1500*12540*1250mm |
Power | 6.5KVA |
After-sales Service Provided | Engineers available to service machinery overseas |
Voltage | 380V |
Certification | CE,ISO9000 |
Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
Local Service Location | Canada, Mexico, Thailand |
Showroom Location | Canada, Mexico, Thailand |
Video outgoing-inspection | Provided |
Machinery Test Report | Not Available |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | Bearing, Motor, Gear |
Axis | 6-axis |
Function | Tig Welding |
Payload | 6KG |
Installation Parameters | Ground Hoisting |
Arm Length | 2000mm |
Speed | Fast Speed |
Repeatability | 0.08mm |
Ambient temperature | 20 ~80 |
Capacity | 6.5KVA |
Advantage | Automatic High Precision |
Quantity(Sets) | 1 - 10 | 11 - 50 | >50 |
Est. Time(days) | 20 | 40 | To be negotiated |
Axis | Max payload | Repeatability | Capacity | Environment | Weight | Installation |
6 | 6KG | ±0.08mm | 6.5KVA | 0-45℃ 20-80%RH(No humidity) | 300KG | Ground/Hoisting |
IP level | Motion range J1 | J2 | J3 | J4 | J5 | J6 |
IP54/IP65(Wrist) | ±170º | +80º~-150º | +95º~-72º | ±170º | +115º~-140º | ±220º |
Max speed J1 | J2 | J3 | J4 | J5 | J6 | |
158º/s | 145º/s | 140º/s | 217º/s | 172º/s | 500º/s |
